• Nuovo Prodotto

Specifiche Tecniche

Elettronica

Motore

Specialized 3.1 Motor, 101Nm torque, 666Nm power

Batteria

840Wh battery

UI/Remoto

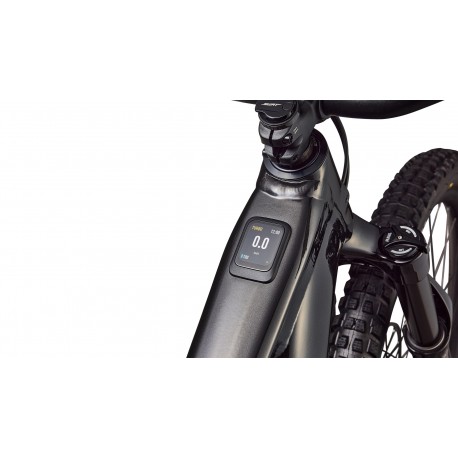

All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized App

Caricatore

Specialized 4amp charger

Telaio

Telaio

All new Levo 4 M5 Alloy frame, 150mm travel,, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel, fork travel up to 180mm

Collarino sella

Alloy, 38.6mm

Forcella

Marzocchi Bomber Z1, 29", S2-S6: 160mm, S1: 150mm, sweep adjust compression

Sospensioni

Ammortizzatore posteriore

*Marzocchi Bomber Inline, EVOL LV air sleeve, rebound adjust, 210x55mm

Freni

Freno anteriore

SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 220mm Centerline rotor

Freno posteriore

SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm Centerline rotor

Trasmissione

Comandi

SRAM 70 trigger, 12-speed, single click

Cambio posteriore

SRAM Eagle 70 T-Type

Pacco pignoni

XS-1270, 12-speed, 10-52t

Catena

SRAM Eagle 70 T-Type Flattop Chain

Guarnitura

SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm

Ingranaggi

SRAM 34t T-Type chainring, 104 BCD, steel

Ruote

Cerchi

Specialized, hookless alloy, 30mm inner width, tubeless ready

Mozzo anteriore

Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h

Mozzo posteriore

Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h

Raggi

DT Swiss Elemental

Pneumatico anteriore

Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4"

Pneumatico posteriore

Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.4"

Camere d'aria

Standard, Presta Valve

COCKPIT

Attacco manubrio

Alloy Trail Stem, 35mm bar bore

Manopole

Specialized Trail Grips

Sella

Body Geometry Bridge Saddle, steel rails

Reggisella

TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6: 200mm

Cockpit

Manubrio

Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1-S2: 780mm width, S3-S6 800mm width

Accessori

SWAT

SWAT Internal downtube storage

Dettagli prodotto

Identificativo

221348

Certificato di conformità

As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: www.nyc.gov/fdny/batteries

Peso

Peso

26.08 kg (57 lb, 7.8 oz)

Misura pesata

S4

*Pesi basati su telai verniciati di produzione come illustrato. I pesi effettivi varieranno in base al colore, alla dimensione del telaio e alla variazione dei componenti. Le specifiche sono soggette a modifiche senza preavviso.

95226-7403
1 Articolo

Scheda tecnica

COMPOSIZIONI
ALLUMINIO

Riferimenti Specifici

ean13
952267403
